The requirement of the challenge Lyrics Alignment (Zalo AI Challenge 2022) is to build a solution to align a song’s audio file to its corresponding lyrics (in text format). The dataset is not disclosed per the competition’s guidelines. Concretely, the input and output of this problem are as follows:

• Input: the audio file (wav) and lyrics file (text)
• Output: token-wise alignment of the lyrics with respect to the audio file (e.g., mark each token beginning and ending time in milliseconds)

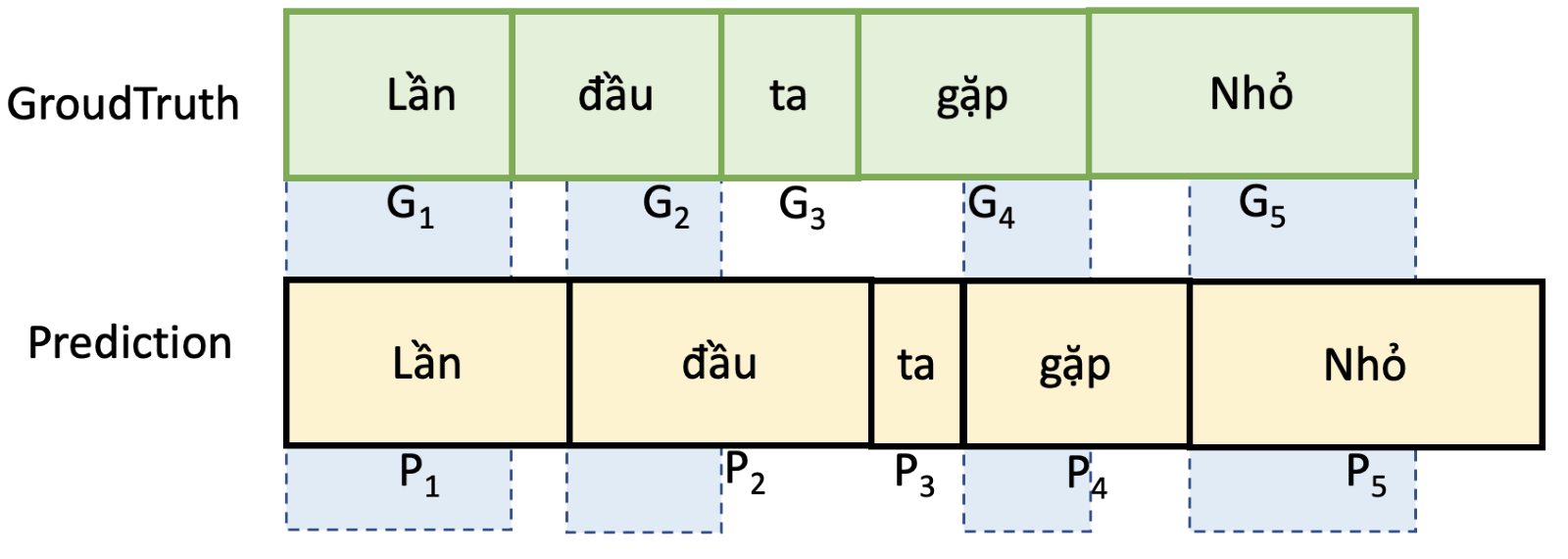

• Evaluating metrics: Intersection over Union (IoU)

Participating in the competition was part of our final examination for the university course “Deep Learning for Data Science” supervised by Dr. Nguyen Tien Huy.

The source code of our solution can be found on GitHub.

Our approach

Our approach consists of two main parts:

• A Vietnamese ASR model fine-tuned from nguyenvulebinh/wav2vec2-base-vietnamese-250h.
• Forced alignment algorithm (dynamic programming)

Training details (such as hyperparameters) can be found in the train/3-train.ipynb file.

Overall pipeline

1. Audio and lyrics files are split pairwise (e.g., if the song has L sentences, there will be L new separate audio and lyrics files based on the provided timestamps). The actual audio data was kept as is (e.g., no augmentation or vocal removal was performed).
2. Construct a pairwise dataset.
3. Train-test split
4. Fine-tune an ASR model based on nguyenvulebinh/wav2vec2-base-vietnamese-250h’s. We observe that after fine-tuning, the model performed worse on regular speech (non-music) data, but we hope it will do better on music data.
5. Feed the test audio into the ASR model
6. Feed the confidence matrix (output of the ASR model) and the test lyrics into the forced alignment algorithm to obtain token-wise alignment.

More details on the inference process

The output of the ASR model is a frame-wise confidence matrix. Each column represents an audio frame, and each row is the probability that the audio sampled at this frame pronounces the corresponding sound in the alphabet. We would finally use a language model in a typical ASR model to decode the matrix into a meaningful sentence. But since the objective of this problem is to align the text to the audio (the transcript is already available), we just need the matrix without doing any decoding.

The provided lyrics in the test set have been split sentence-wise by default. But to feed them into the forced alignment algorithm, we have to concatenate and normalize the text. After feeding the confidence matrix and the normalized transcript to the forced alignment algorithm, we should get the alignment of every token in the song.

Finally, we re-split the tokens into their corresponding original sentences, recover the original casing, and adjust the alignment time to continuous.

Continous timing adjustment is one of the key points to get better IoU score. We observed an increase by 8% in IoU on the public test set after applying the method.

Results

• Public test set: 0.38285
• Private test set: 0.47556 (Rank #7)

Reproducing

1. Install the conda environment
2. Set the correct paths in the .env file
3. Run all cells in predict.ipynb
